Floor Prep & Repair — Why Surface Preparation Makes or Breaks Your Epoxy

Why Floor Preparation Is Critical for Coating Success

Epoxy coatings don't chemically bond to concrete the way stains penetrate — they rely entirely on mechanical adhesion. The coating needs a roughened surface profile to grip into, similar to how Velcro hooks catch loops. Without proper surface texture and contamination removal, even the highest-grade epoxy systems will eventually separate from the substrate.

The American Concrete Institute specifies a minimum Concrete Surface Profile (CSP) of 2-3 for resinous coatings like epoxy, a standard that requires diamond grinding equipment to achieve consistently.^[1] Acid etching alone doesn't create sufficient profile depth or consistency, which is why professionals who do this work correctly carry grinders, not just buckets of muriatic acid.

Surface preparation accounts for roughly 60-70% of a coating project's labor time. When you see quotes that seem suspiciously low, it's almost always because the contractor is planning to cut corners during prep — not because they found cheaper epoxy.

The Most Common Cause of Coating Failure

Walk into any garage where the epoxy is peeling in sheets, and you'll find one of three preparation failures underneath: inadequate surface profile, moisture issues that weren't tested for, or contamination that wasn't fully removed. The coating itself rarely fails — the bond between coating and concrete does.

Delamination typically appears within 6-18 months of installation when prep is rushed. You'll notice edges lifting first, then larger sections bubbling as moisture vapor or residual oils break the adhesion plane. Once delamination starts, there's no repair option except complete removal and reinstallation with proper preparation.

Contractors who guarantee their work for 5-10 years do so because they followed preparation protocols that prevent these failures. Those offering shorter warranties or none at all are often signaling that they're skipping critical steps.

Professional Concrete Repair Methods

Cracks, spalls, and surface damage need structural repair before any coating goes down. Applying epoxy over compromised concrete doesn't reinforce it — the coating will simply follow the crack pattern or hollow out over spalled areas.

Professional repair work addresses the root cause of concrete damage, not just cosmetic appearance. Active cracks that show signs of continued movement require different treatment than dormant hairline cracks, and contractors should assess each defect individually.

Crack Repair: Routing, Filling, and Epoxy Injection

Hairline cracks under 1/8 inch can typically be filled with flexible polyurea or epoxy crack fillers after light routing to create a V-groove for material bonding. Wider cracks require routing with a diamond blade to remove weak edges, then filling with structural epoxy repair mortar that matches the concrete's compression strength.

Active cracks that indicate ongoing foundation settlement or slab movement need control joints installed — essentially planned crack locations that prevent random fracturing. Trying to permanently seal active cracks with rigid epoxy is a temporary fix at best.

For critical structural cracks, epoxy injection using ports drilled along the crack line forces low-viscosity epoxy deep into the fracture under pressure.^[2] This creates a structural bond stronger than the surrounding concrete, but it's expensive and only necessary for cracks compromising the slab's integrity.

Spall and Surface Damage Repair

Spalling — where the concrete surface flakes or pops off in chunks — usually results from freeze-thaw cycles, corroded rebar, or low-quality concrete. Surface spalls less than 1/2 inch deep can be patched with polymer-modified repair mortars after grinding the damaged area to sound concrete.

Deeper spalls require saw-cutting a rectangular perimeter, removing all damaged concrete, and filling with structural repair mortar in lifts. The edges must be vertical or undercut slightly so the patch locks in mechanically, preventing future separation.

If spalling is widespread across more than 20-30% of the floor, you're looking at resurfacing the entire slab with an overlay system rather than patching individual areas. Some concrete is simply too degraded for coatings to be cost-effective.

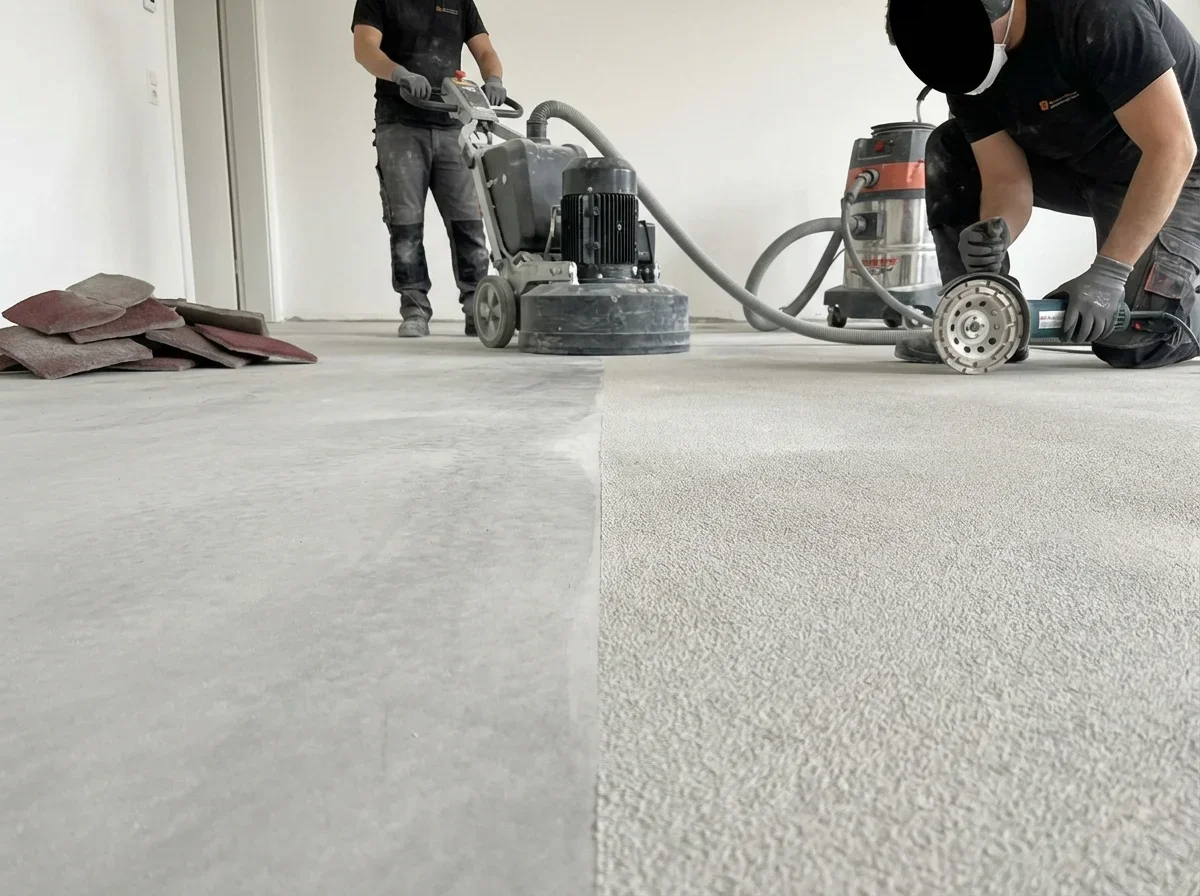

Surface Profile: How Contractors Create Proper Adhesion

The texture you need for mechanical adhesion resembles medium-grit sandpaper — rough enough to see and feel, but not so aggressive that it creates deep valleys the coating can't fully penetrate. This is where most DIY attempts and budget contractors fail.

Proper profile depth isn't subjective or negotiable. The coating manufacturer specifies CSP requirements in their technical data sheets, and installers need specialized equipment to meet those specifications consistently across the entire floor.

Diamond Grinding vs Acid Etching

Diamond grinding uses rotating segmented discs embedded with industrial diamonds to abrade the concrete surface, removing laitance (the weak cement paste layer) and exposing the aggregate beneath. This creates the mechanical profile epoxy needs while simultaneously opening the concrete's pore structure for better penetration.^[1]

Planetary grinders with multiple spinning heads are the professional standard — they leave a uniform finish without swirl marks and collect dust through integrated vacuum systems. Walk-behind single-disc grinders work for smaller spaces but require more skill to avoid uneven results.

Acid etching with muriatic acid dissolves surface laitance chemically rather than mechanically removing it. While it's cheaper and faster than grinding, acid etching rarely achieves the CSP 2-3 profile epoxy requires. It also leaves residual salts that can interfere with coating adhesion unless thoroughly neutralized and rinsed — a step often rushed or skipped.

Some contractors use acid etching as a cleaning step after grinding, which is acceptable. Using it as the sole preparation method for epoxy coating is not.

CSP Standards and Testing

The International Concrete Repair Institute defines Concrete Surface Profile on a scale from CSP 1 (almost smooth) to CSP 9 (heavily abraded). Epoxy manufacturers typically specify CSP 2-3, which translates to a surface that feels like 60-80 grit sandpaper.

Contractors should carry CSP profile chips — physical reference samples you can compare against the prepared surface. If they're not testing profile depth, they're guessing. And guessing on adhesion requirements leads to callbacks.

Some specification-grade projects require pull-off adhesion testing, where a specialized gauge measures how much force is needed to separate a test dolly bonded to the concrete. Residential work rarely goes to this level, but knowing the contractor understands these standards indicates they take preparation seriously.

[CTA: Find Contractors with Professional Grinding Equipment]

Moisture Testing and Mitigation

Concrete is porous and hygroscopic — it absorbs and releases moisture based on humidity conditions and groundwater pressure. Coating the surface with an impermeable epoxy layer traps moisture inside, creating vapor pressure that eventually breaks the adhesion bond from beneath.

Moisture testing before coating isn't optional, regardless of how old or dry the concrete appears. Even slabs that have been in place for decades can fail moisture tests if groundwater conditions change or if they were poured without proper vapor barriers.^[3]

The two industry-standard tests are calcium chloride testing (ASTM F1869), which measures moisture vapor emission rate from the surface, and in-situ relative humidity testing (ASTM F2170), which uses probes embedded in the slab to measure internal moisture conditions. Calcium chloride is faster and cheaper but less accurate than RH testing.

Acceptable moisture levels depend on the coating system, but general guidelines are below 3 pounds per 1,000 square feet per 24 hours for calcium chloride tests, or below 75-80% relative humidity for in-situ probes.^[3] Results above these thresholds require either waiting for the slab to dry naturally (which can take months) or installing moisture mitigation primers designed to block vapor transmission.

New construction slabs need significantly longer cure times than contractors typically allow — at least 28 days for initial set, but often 60-90 days before moisture levels drop to coating-acceptable ranges. Rushing this timeline guarantees problems.

Pro Tip: If a contractor offers to complete your garage coating in a single day without conducting moisture tests, walk away. Proper preparation requires crack repair curing time (4-6 hours), thorough post-grinding cleanup, and primer curing before topcoat application. Quality work takes time — shortcuts taken during prep show up as failures within 6-18 months.

Oil Stain and Contamination Removal

Automotive oil, transmission fluid, and grease penetrate deep into concrete's porous structure. Surface cleaning removes visible stains, but residual petroleum in the substrate will prevent epoxy adhesion just as effectively as surface contamination.

Degreasing starts with chemical application — alkaline cleaners or specialty concrete degreasers that emulsify oils so they can be rinsed away. Multiple applications with stiff brushing and dwell time are typically necessary for heavy contamination. Hot water pressure washing after degreasing helps flush subsurface residues.

Testing involves the water bead test: spray clean water across the floor, and if it beads up anywhere rather than spreading evenly, contamination remains. Professionals sometimes use methanol or acetone wipe tests that show residues invisible to the naked eye.

When Shot Blasting Is Necessary

Shot blasting uses steel projectiles fired at the concrete surface at high velocity to mechanically remove surface contaminants while simultaneously creating profile. It's more aggressive than diamond grinding and necessary when oils have penetrated so deeply that degreasing and grinding can't fully remove them.

The equipment is expensive and loud — not practical for most residential contractors to own but available through specialty rental. Shot blasting also works for removing existing failed coatings that grinding would just clog discs on.

In cases where contamination extends more than 1/4 inch deep (visible in core samples), the only reliable solution is removing and replacing the affected concrete. This is rare but does happen with decades-old oil stains or industrial contamination.

[CTA: Get Detailed Prep Process Explanations from Local Pros]

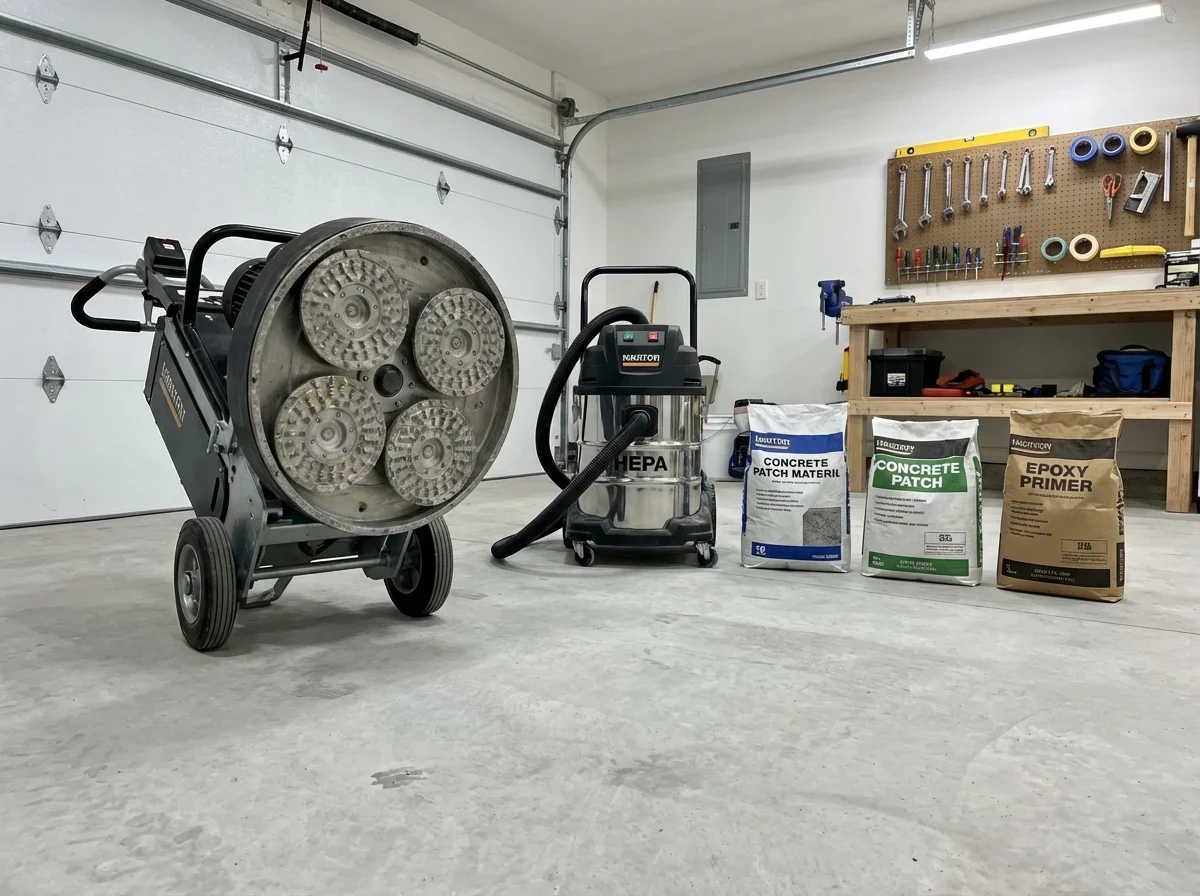

What Should Professional Floor Prep Cost?

Surface preparation should represent 40-50% of your total project cost for standard residential work. On a typical two-car garage (400-500 square feet), you're looking at 8-12 hours of prep labor: crack repair, diamond grinding, thorough cleaning, and moisture testing if conditions warrant.

Equipment costs drive pricing — planetary grinders run $15,000-$40,000 new, dust extraction systems add another $3,000-$8,000, and moisture testing equipment costs $500-$2,000. Contractors who own this equipment need to amortize those investments across their jobs.

If you receive quotes that are 30-40% below the market average in your area, ask specifically what preparation methods they're using. Contractors cutting prices almost always cut prep time first, since it's the most labor-intensive phase and the least visible once coating is applied.

Proper preparation isn't where you want to hunt for savings. The coating materials themselves represent only 15-20% of total project cost, so even if a budget contractor uses identical epoxy products, they're saving money somewhere — and that somewhere is almost always surface prep.

Red Flags That Signal Corner-Cutting Contractors:

• Claims they'll "just acid etch" rather than diamond grind the surface
• Offers to complete entire garage coating in a single day
• No mention of moisture testing for slabs under 5 years old or below-grade spaces
• Unable to explain CSP standards or show grinding equipment photos
• Becomes vague or defensive when asked about specific prep methods
• Quotes 30-40% below market average without clear explanation
• Focuses heavily on color/aesthetics, barely discusses preparation process
• Doesn't provide written timeline showing cure times between prep steps

Red Flags: Contractors Who Cut Corners on Prep

Be immediately skeptical of contractors who say they'll "etch the floor with acid" rather than grind it. While acid etching has legitimate uses as a supplementary cleaning step, it can't create the mechanical profile epoxy requires for long-term adhesion.

Watch out for contractors who want to start coating the same day they arrive without performing moisture tests on slabs newer than five years old or in basements/below-grade spaces. Moisture problems don't show up immediately — they appear 6-18 months later when the coating delaminates.

Any contractor who says they can complete your entire garage in one day is skipping critical steps. Proper crack repair needs 4-6 hours to cure before grinding. Grinding generates dust that must be thoroughly vacuumed and cleaned before priming. Primer needs time to cure before topcoat application.

Contractors should be able to explain their preparation process in detail, reference CSP standards, and show you photos of their grinding equipment. If they become vague or dismissive when asked about prep methods, they're likely contractors who view preparation as an inconvenience rather than the foundation of their work.

Find Contractors Who Invest in Proper Prep Equipment

The coating products contractors use are relatively similar — there are only a handful of quality epoxy manufacturers, and most professionals use products from the same tier. What separates excellent installations from failures is the equipment investment and preparation knowledge contractors bring to your project.

Look for contractors who list their grinding equipment on their websites or in their marketing materials. Planetary grinders from brands like Husqvarna, Diamatic, or Blastrac indicate they've made the financial commitment to proper surface preparation.

Ask to see recent project photos that show the preparation phase, not just finished results. Photos of the concrete after grinding — showing the exposed aggregate and uniform profile — tell you more about a contractor's quality standards than photos of glossy finished floors.

[CTA: Compare Contractors by Their Preparation Methods]

During consultations, pay attention to how much time contractors spend discussing preparation versus coating options. Pros who know their work will last spend more time explaining moisture testing protocols and surface profile requirements than discussing color flake choices. That focus tells you where their priorities lie — and where yours should too.
